Description

Complete Office Solution

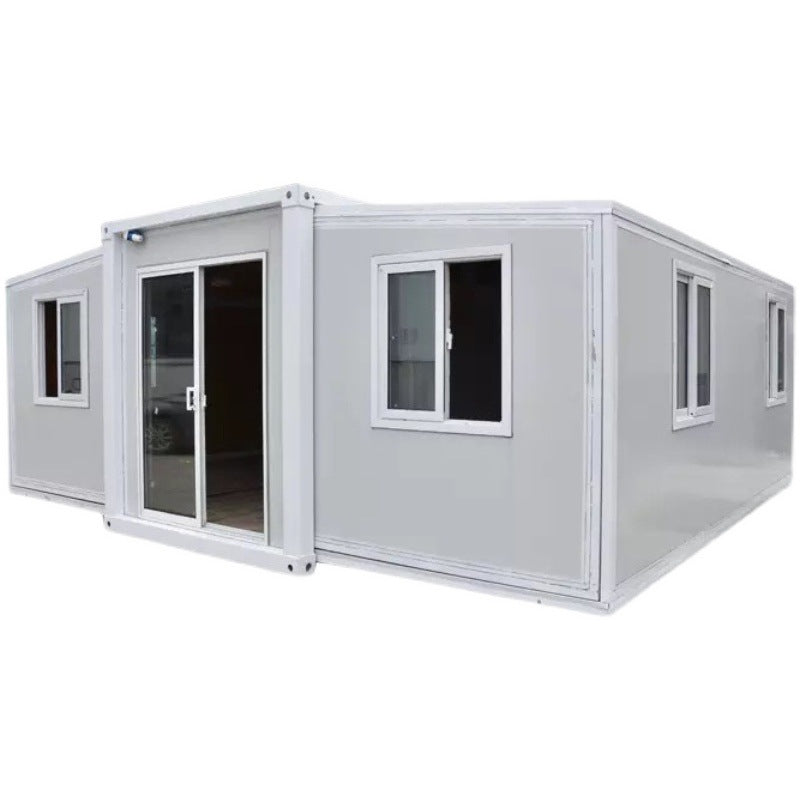

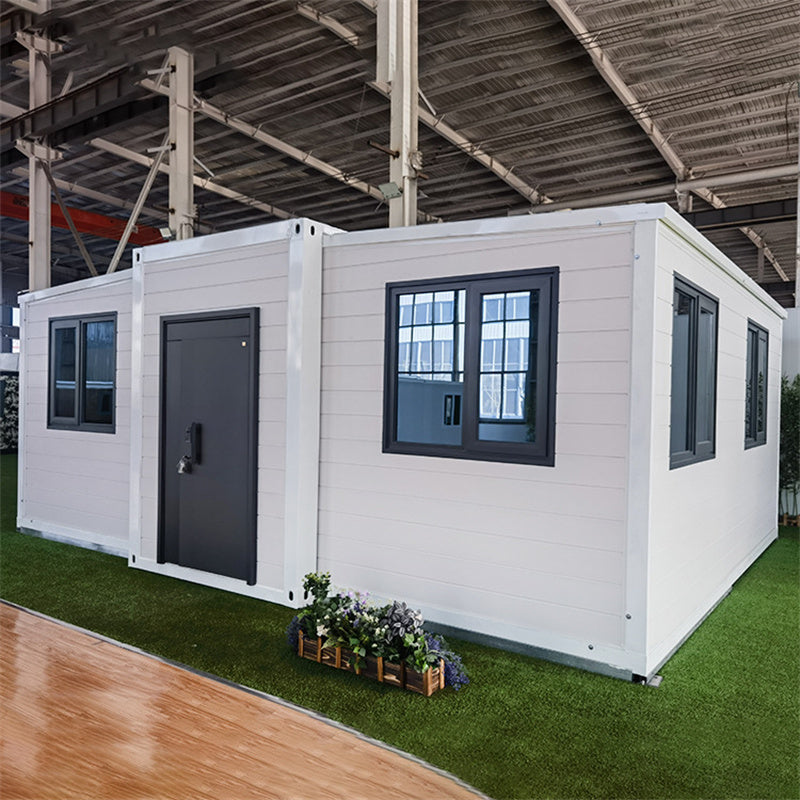

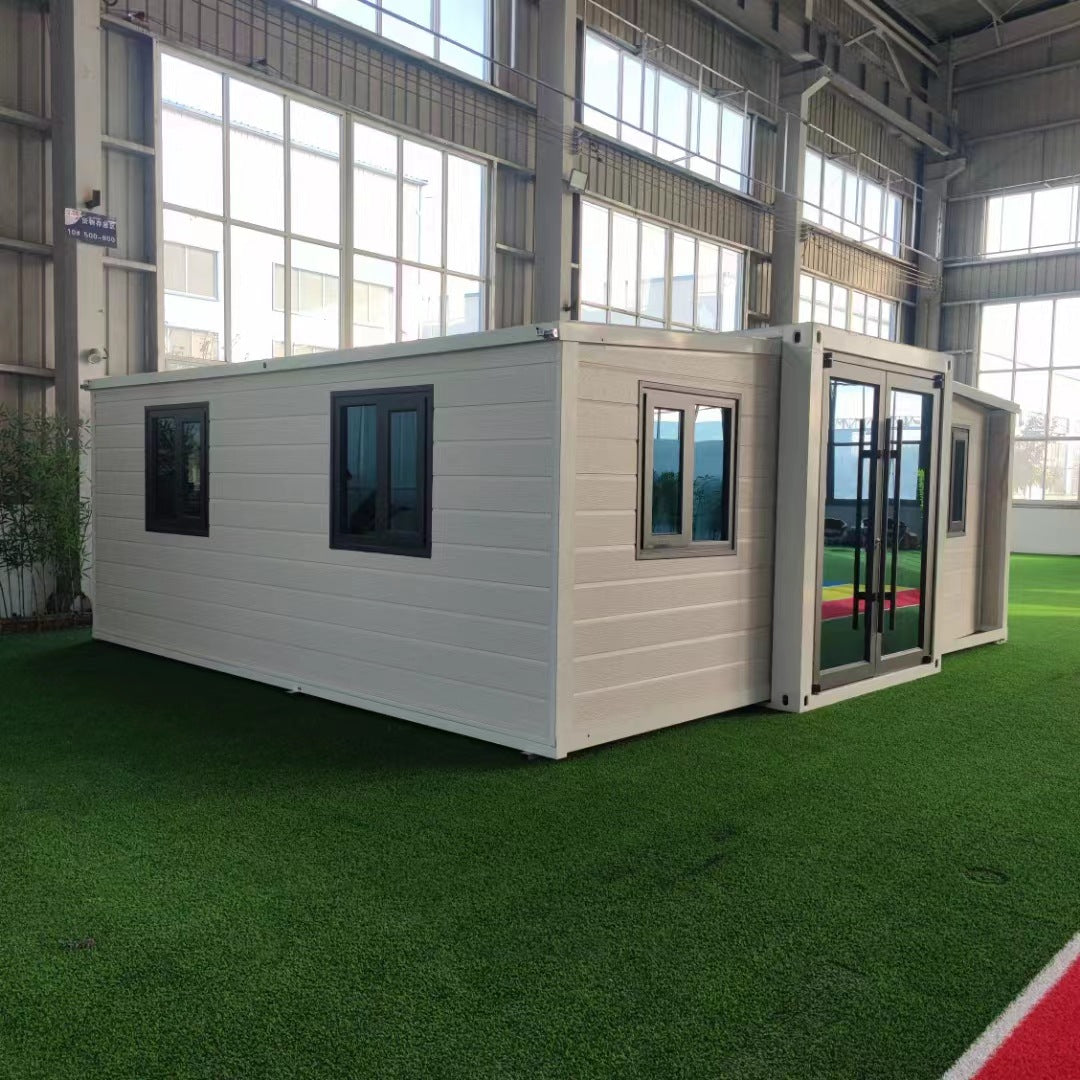

Compact Living Pro’s 40′ x 19′ Rapid Deploy Office offers over 775 square feet of ready-to-use workspace that can be set up in less than an hour. Ideal for remote locations, off-grid projects, or short-term expansions, it delivers a fast, comfortable, and durable solution in a modular format.

This mobile unit features a built-in restroom, pre-wired electrical system, and rugged, weather-resistant design made to handle extreme conditions. Whether you need a private office, a collaborative workspace, or a crisis response center, the Rapid Deploy Office is a turnkey solution built for immediate productivity.

🏠 Key Features

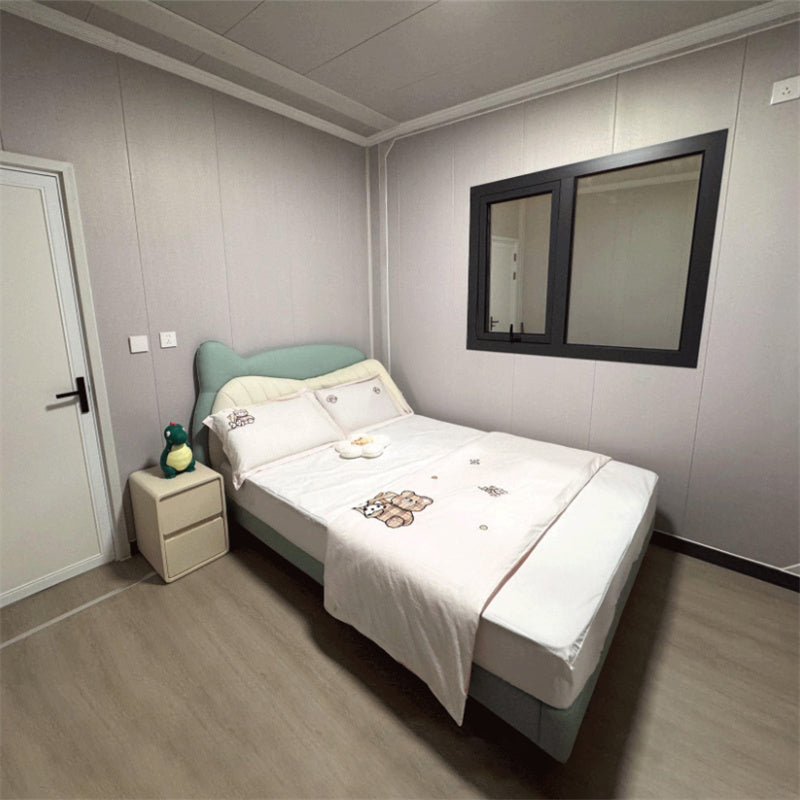

• 2 Private Bedrooms: Accommodates 1–6 people comfortably

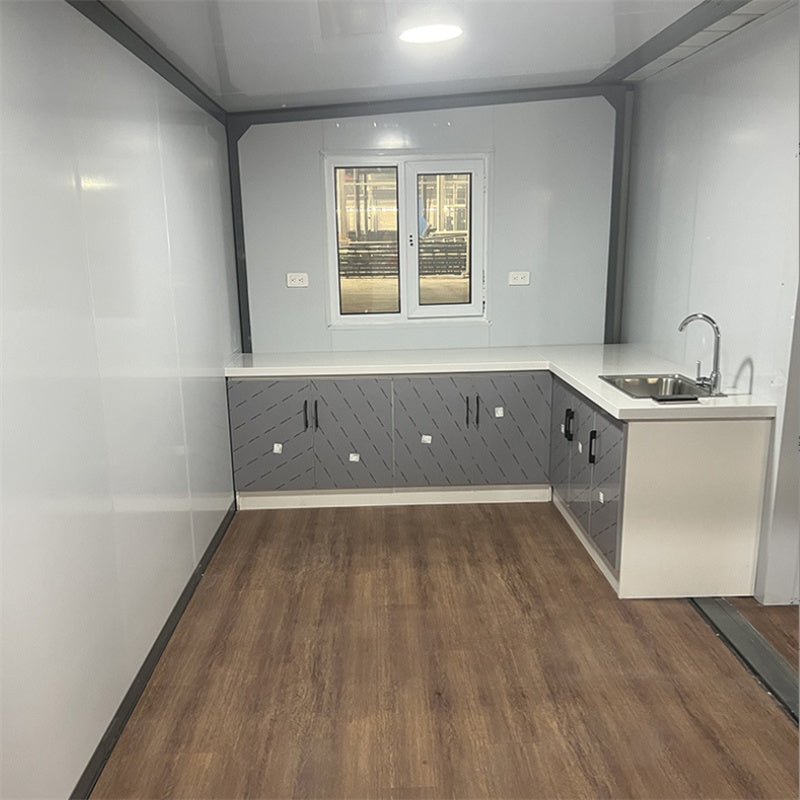

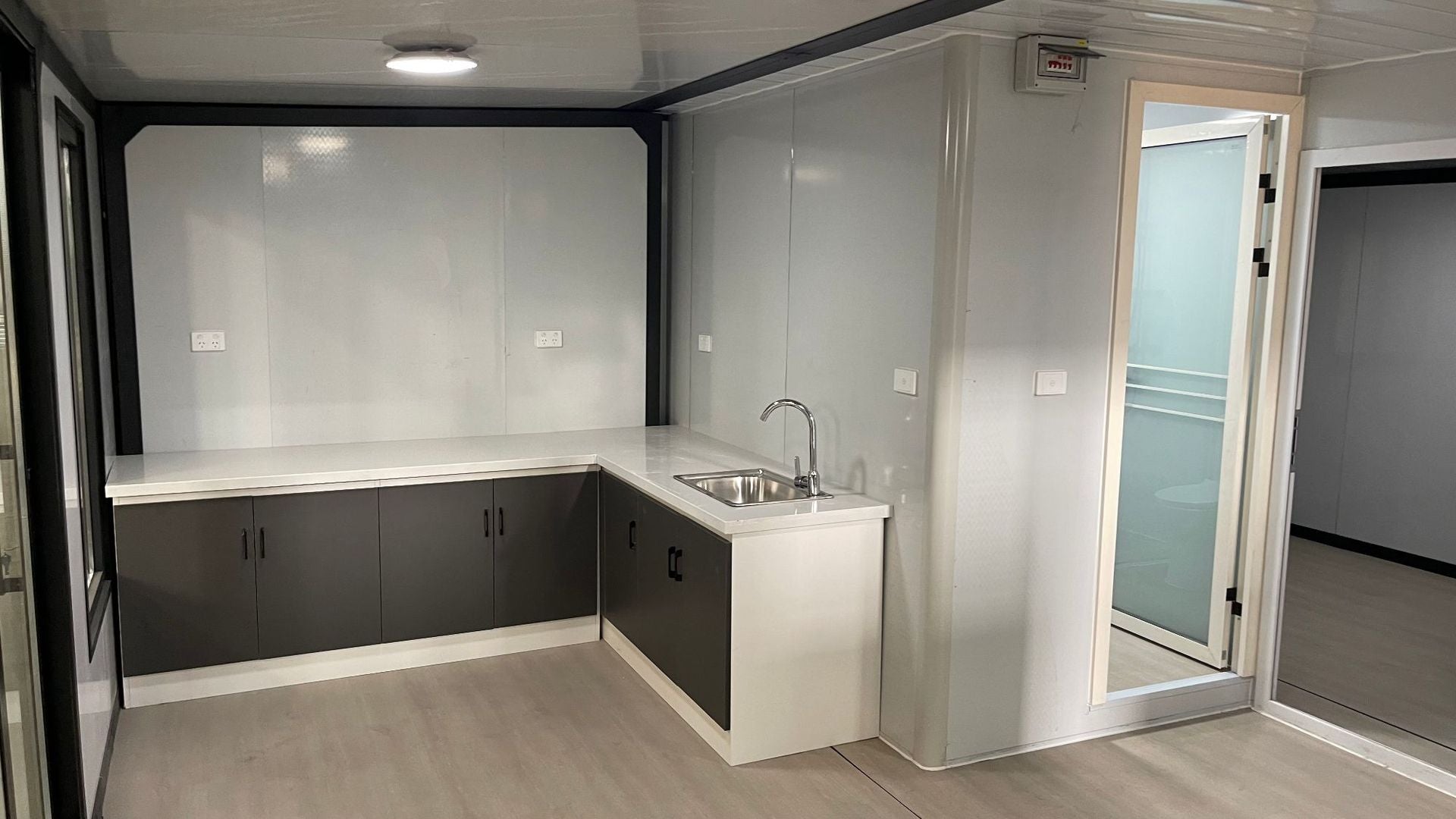

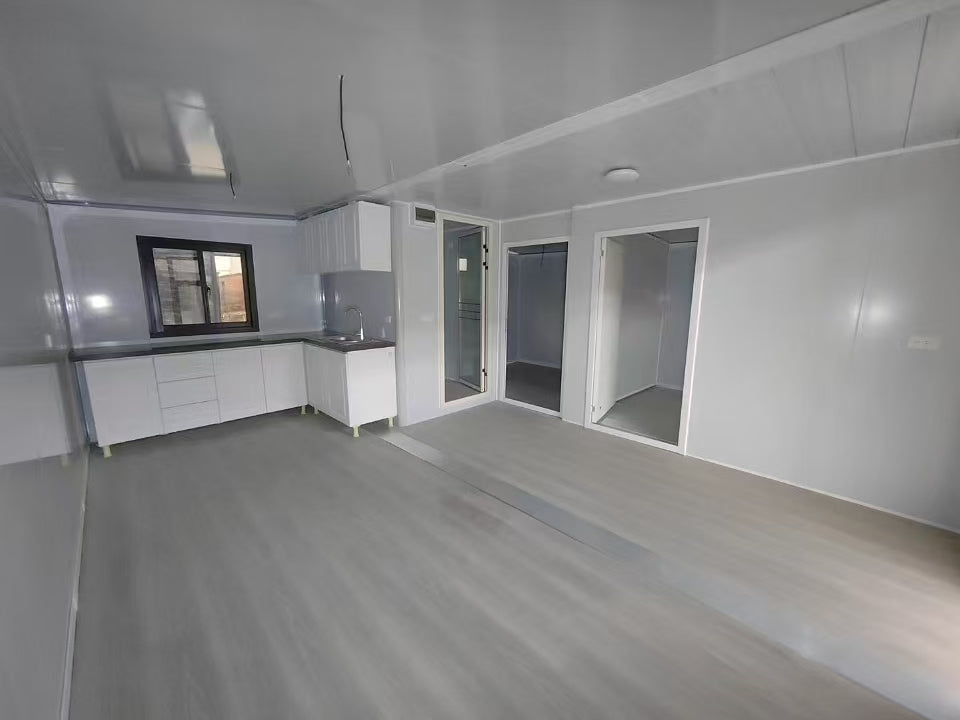

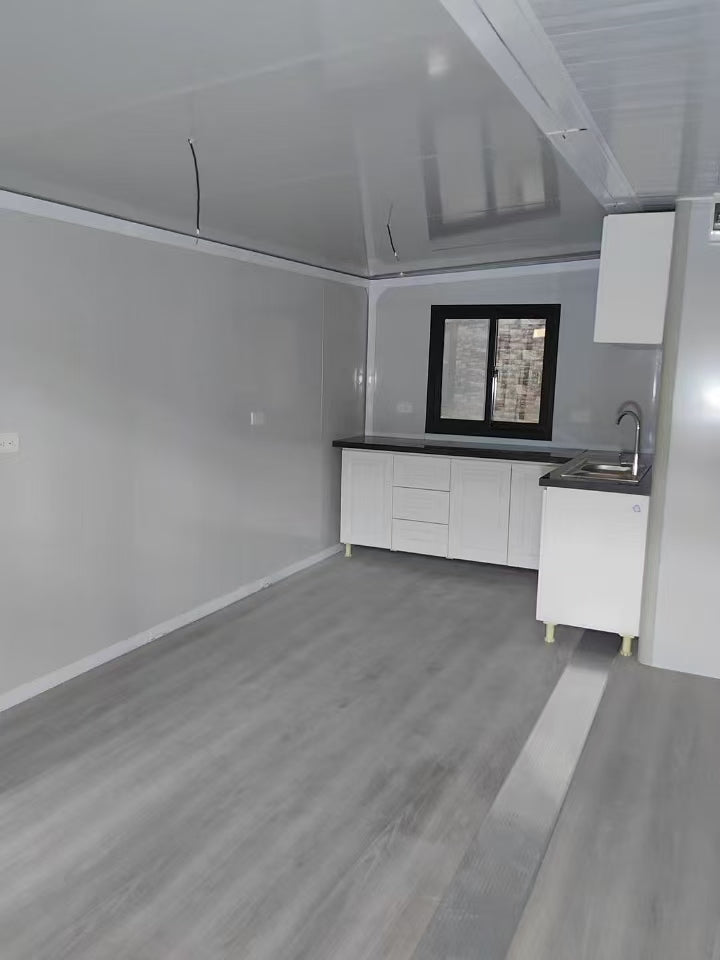

• Open Living + Dining: Spacious central space for lounging and meals

• Expandable design with quick setup on delivery

• Pre-installed doors, windows, electrical, and lighting

• Insulated wall and ceiling panels for year-round comfort

• Galvanized steel frame for long-lasting strength

📐 Dimensions

• Guest Capacity: 1–6 occupants

• Electric Power Consumption: 20KW

• Ceiling: 831 ceiling board interior finish

• Flooring Thickness: 18 mm (main), 18 mm bamboo adhesive board (wings)

• Expanded Size: 38′ 9″ L × 20′ 5″ W × 8′ 2″ H
  • Internal Size: 37′ 10″ L × 19′ 11″ W × 7′ 3″ H
  • Folded Size: 38′ 9″ L × 7′ 3″ W × 8′ 2″ H
  • Surface Area: ~865 SF
• Room Sizes:
  • • Bedrooms: ~7’8″ to 9’10” wide
    • Living Room + Kitchen: ~21’1″
    • Bathroom: Compact layout with all fixtures

🔧 Construction Specifications

• Main Frame: Fully galvanized, 80×100×3.0 mm square tubes

• Top & Side Beams: Square tubes, 3.0 mm

• Bottom Beams: Flanged steel pieces, 3.0 mm

• Steel Columns: Flanged pieces, 3.0 mm

• Galvanized Hangers: 210×150×1605 mm heavy-duty support

• Top Frame: 40×80×1.5 mm P-shaped pipes

• Bottom Frame: 60×80×2.5 mm square tubes

• Folding Hinges: 130 mm galvanized embedded hinges

• Protective Coating: Electrostatic powder + plain powder anti-corrosion coating

• Roof Plate: 50 mm EPS colored steel insulated panel

🪟 Doors & Windows

• Windows: Plastic steel windows, 930×1130 mm

• Main Entrance Door: Steel door, Broken-bridge aluminum + double-layer 1700×1970 mm

⚡ Electrical System

• Breaker: 1 circuit breaker with 20A leakage protection

• Lighting: Flat square lamps + large ceiling lamps

• Outlets: Standard USA three-hole sockets

• Switches: Dual-opening, single-key switches

• Wiring:

  • 6 mm² for incoming main line

  • 4 mm² for air conditioning

  • 2.5 mm² for outlets

  • 1.5 mm² for lighting

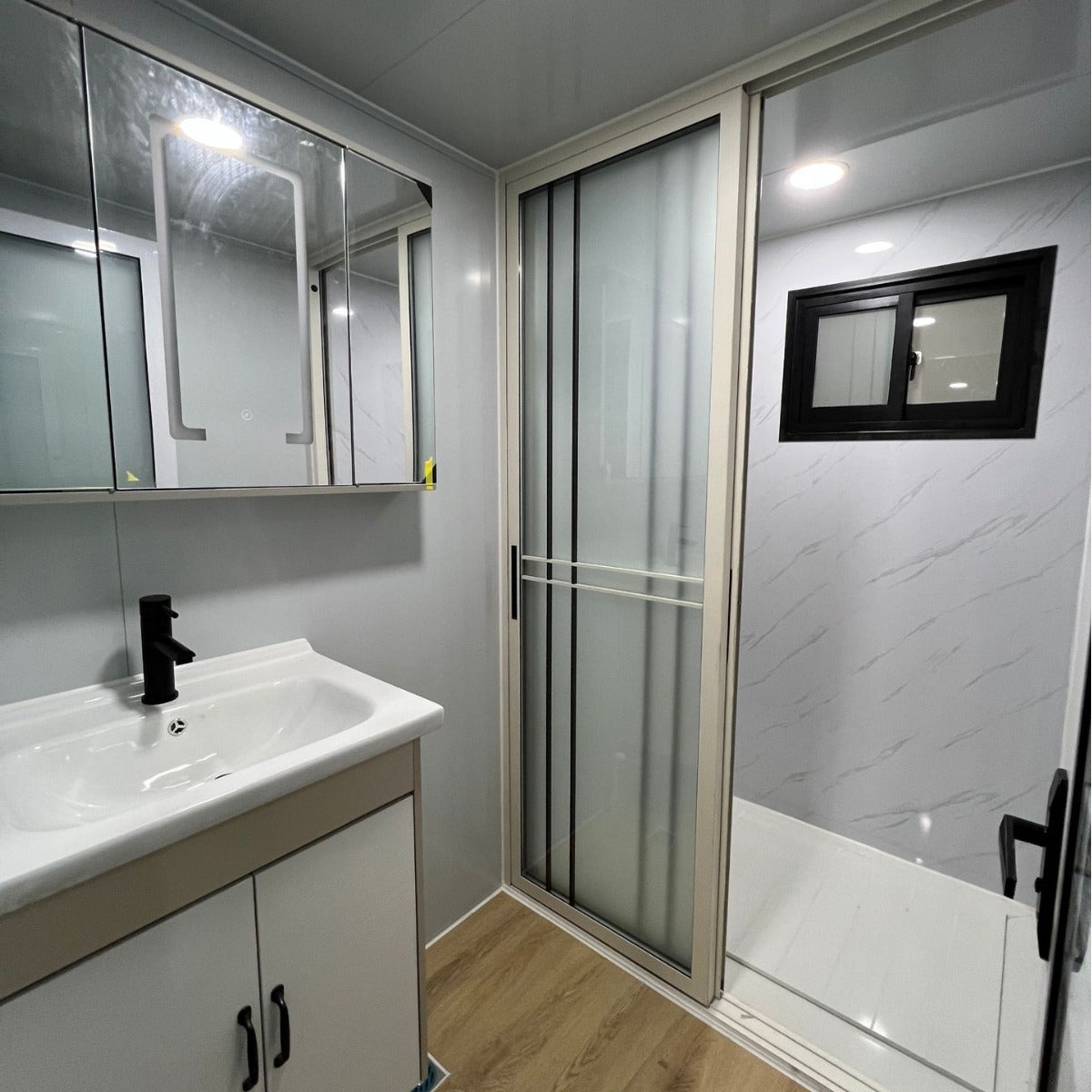

🚿 Bathroom

• Space available for shower, toilet, and sink installations
• Dry/Wet Separation with Changhong glass doors
• Shower (copper core), wash basin, intelligent mirror cabinet, toilet
• UV wall panels, SPC flooring, polyurethane insulated base, steel bottom protection
• Fully plumbed for water and sewer connections

🧱 Wall Panels & Ceiling

• Interior Ceiling: 831 ceiling board

• Walls (Side, Front, Back): 50 mm EPS insulated steel panels

🎨 Decorative Lines

• Baseboards, top corner lines, and vertical bars

• Overlap edges finished for a polished interior look

🪵 Flooring

• Main Frame: 18 mm calcium silicate board

• Wings: 18 mm bamboo adhesive board

🔄 Use Cases

• Full-time residential living

• Guest housing or rental space

• On-site staff housing or mobile lodging

🛠 What’s Included

• Expandable container house structure

• Pre-installed windows & doors

• Electrical system: breaker, wiring, outlets, switches, and lighting

• Flooring and ceiling systems

• Wall and roof insulated panels

• Decorative lines and finishing trim
